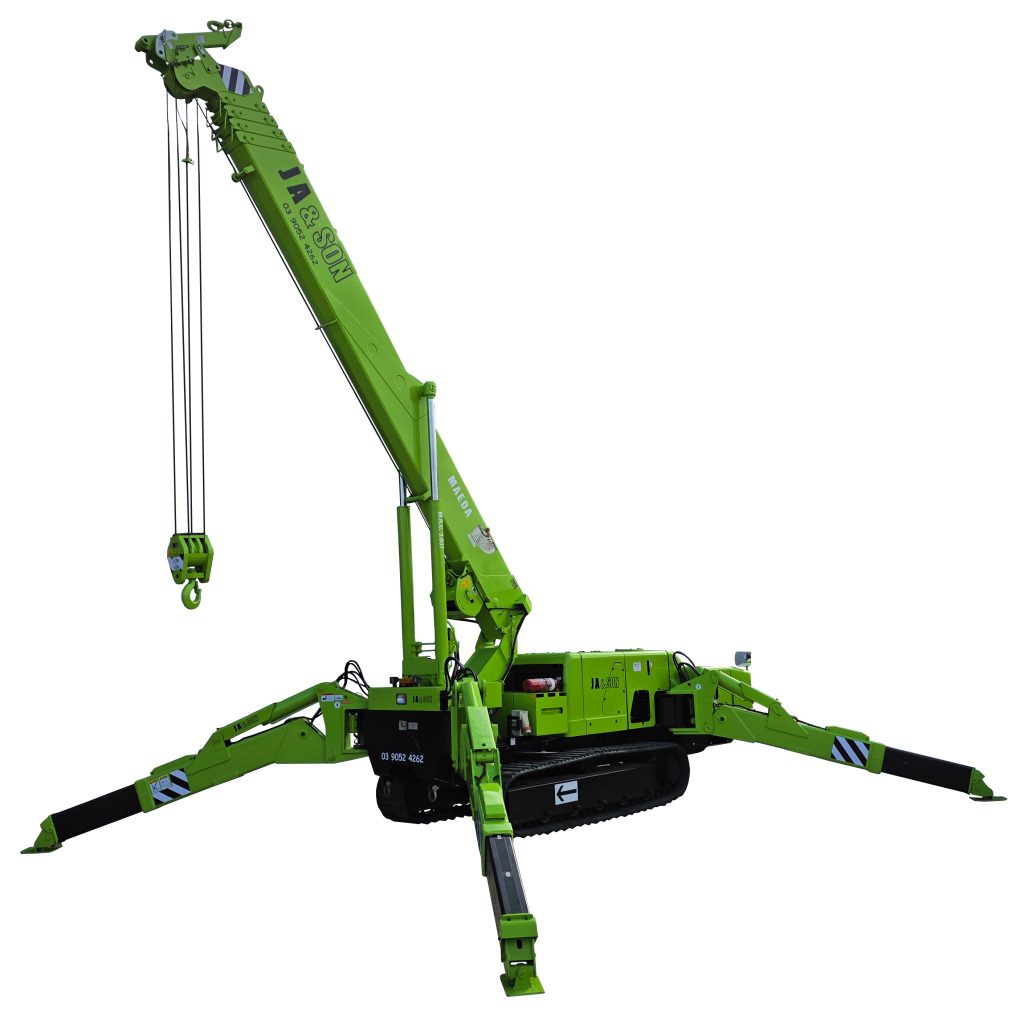

The Maeda MC 405CRME is a compact mini crawler crane, which has outriggers, hence the reason why it is also known as a spider crane. When packed up, it is only 1380 mm wide making it suitable to fit through narrow access areas. Both Diesel or 3 Phase powered,and weighing in at 5750 kg, it has a maximum lift capacity of 3830 kg at a 2.7 meter working radius. It’s 3 phase power option is great for working indoors or in confined spaces, as there are no emissions. This crane has a maximum lifting height of 16.80 meters and a maximum working radius of 16.00 meters. This crane also has a pick and carry feature up to 500 kg. This crane, combined with our experienced operator will ensure your job is done right the first time
Specifications
| Height | 1980 mm |
| Width | 1380 mm |
| Length | 4980 mm |
| Mass | 5750 kg |
| Load capcity | 3830 kg |
